Description

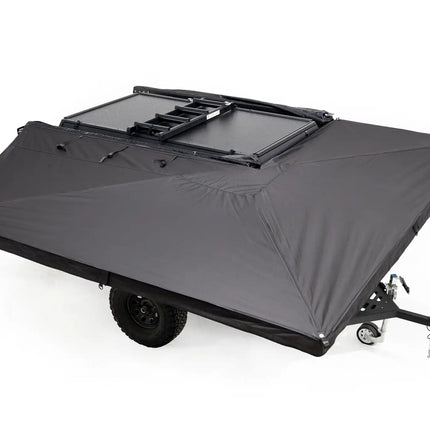

270 Awning V2 — Side and rear coverage. No poles required.

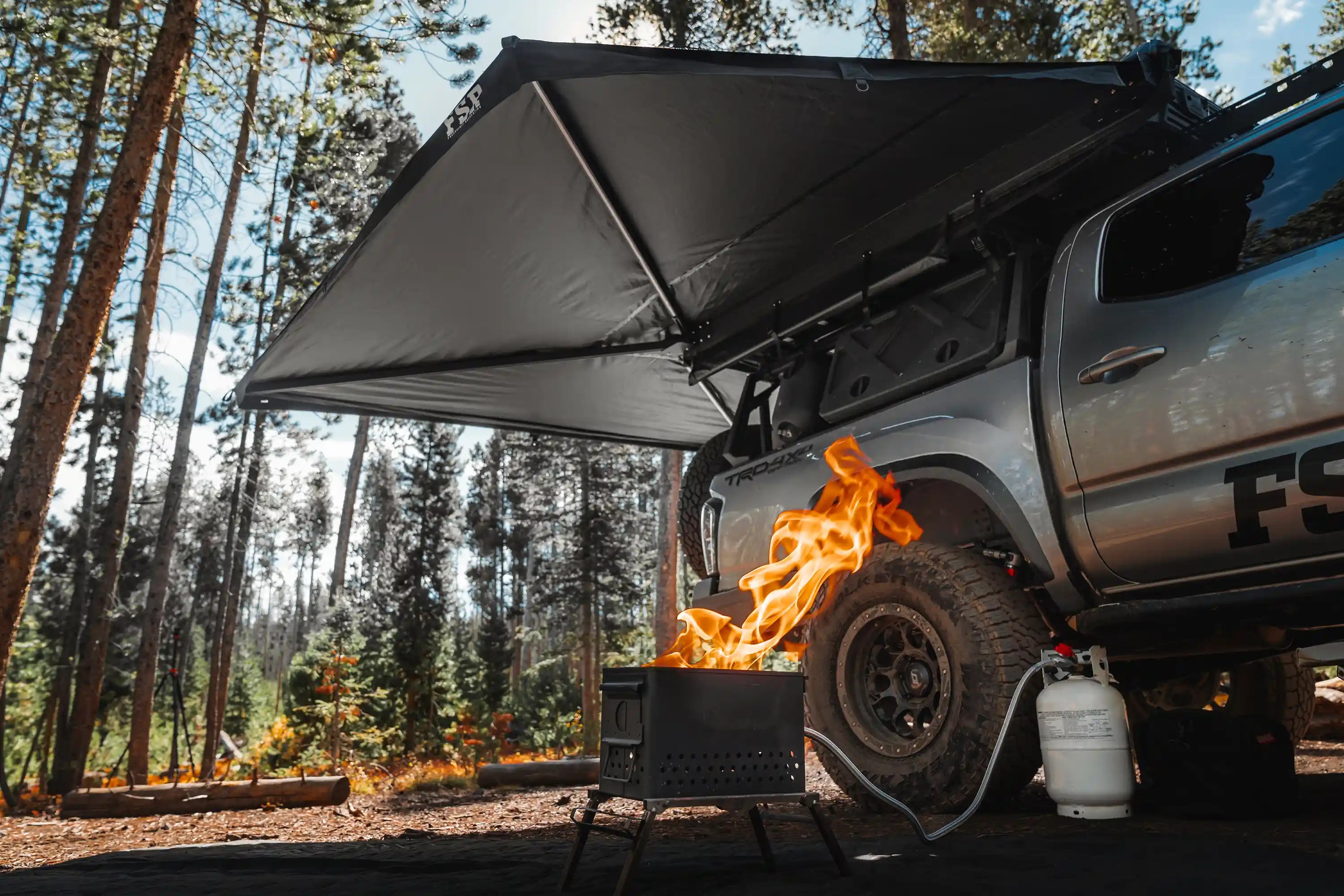

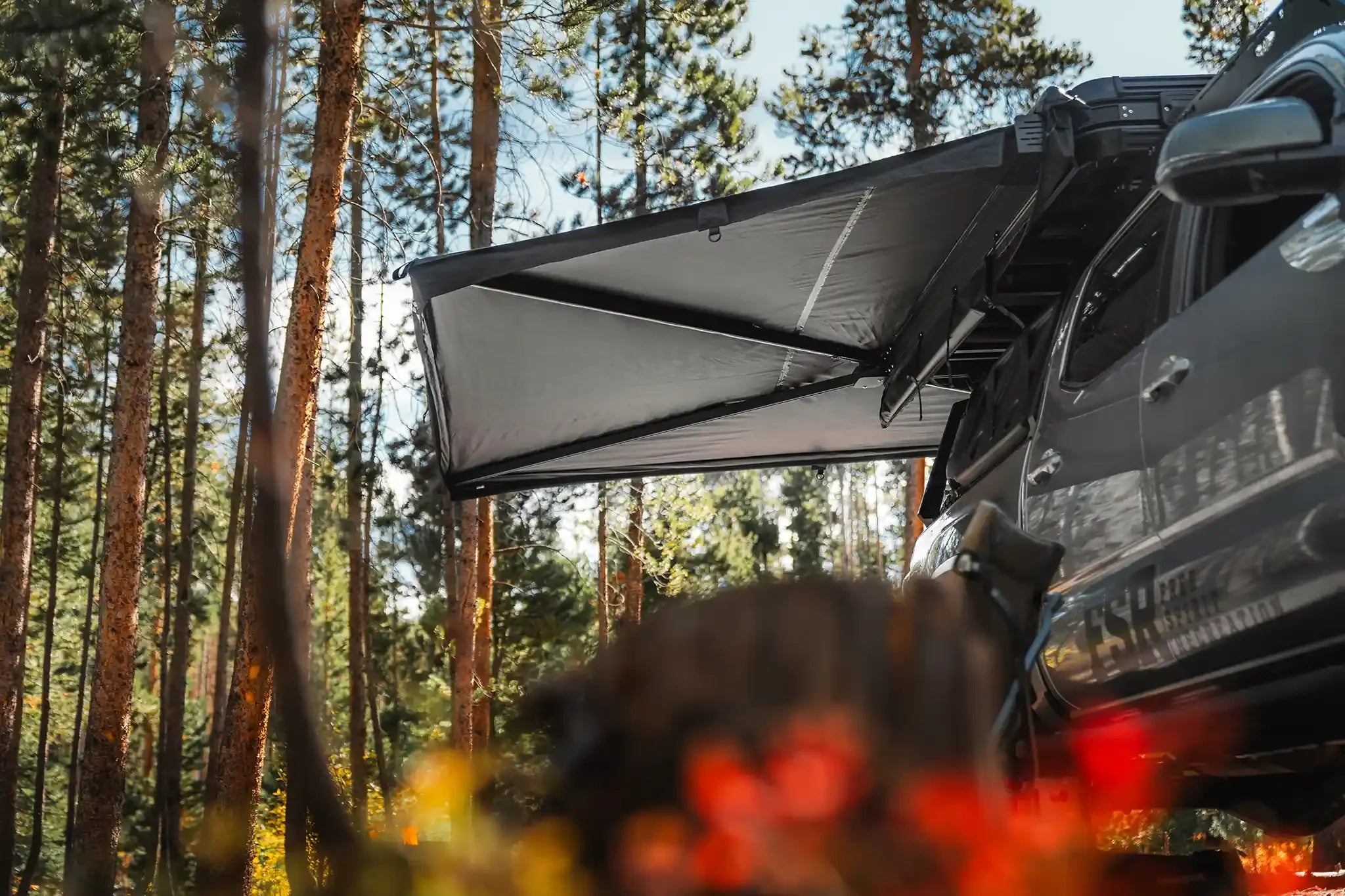

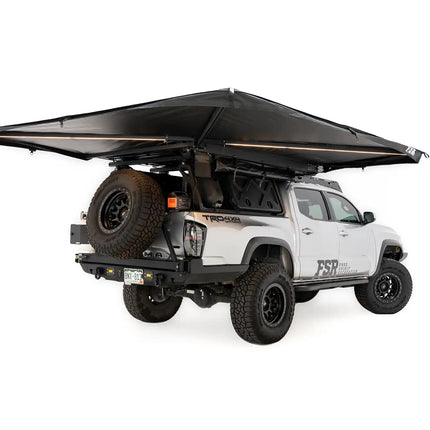

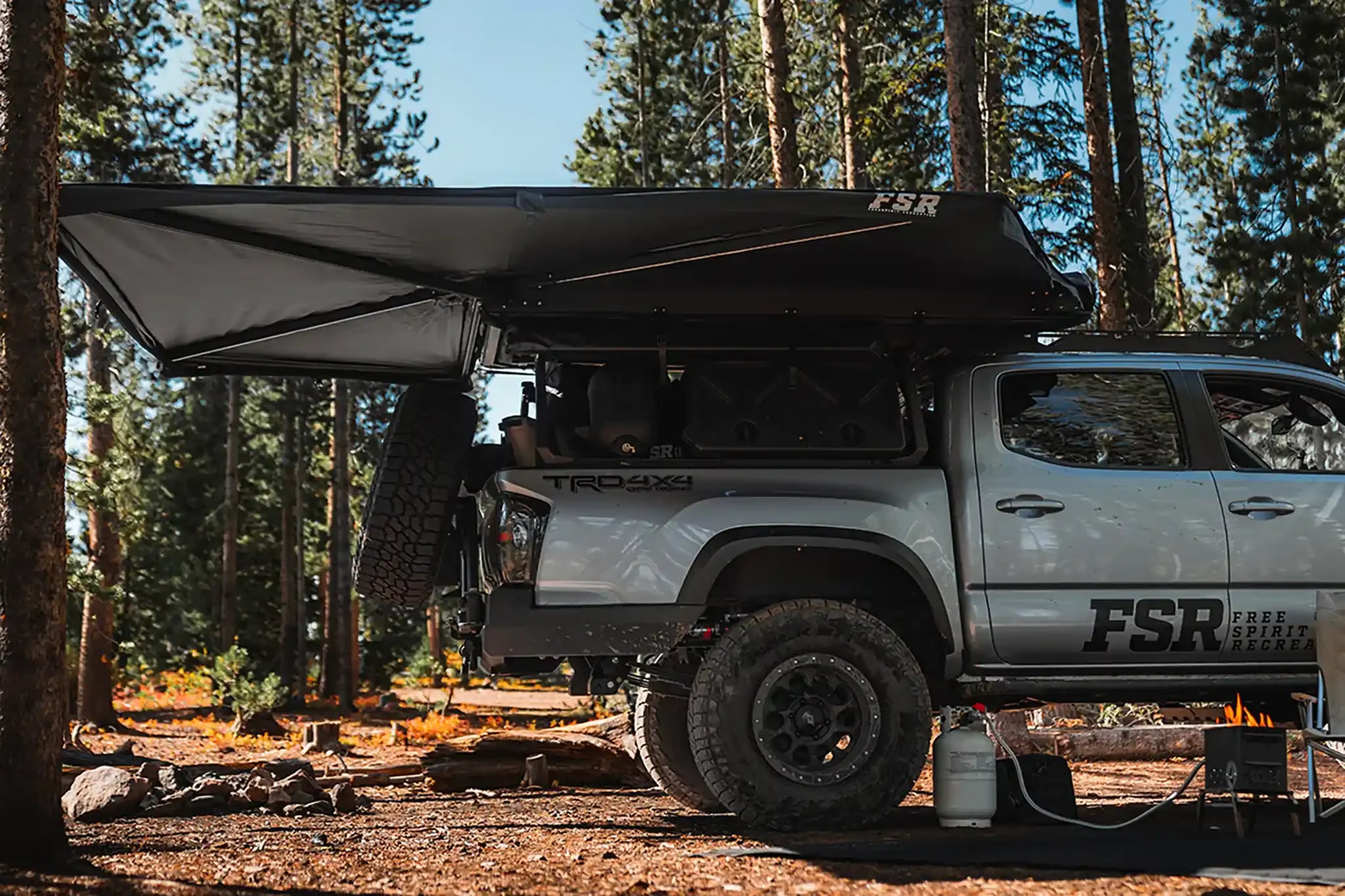

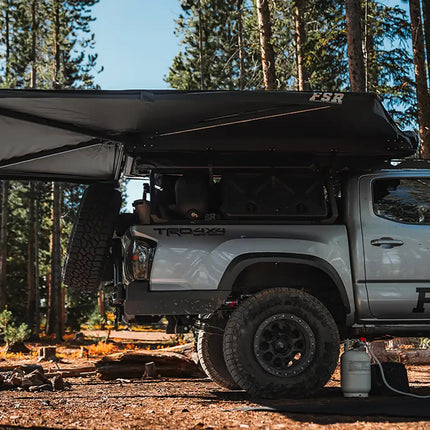

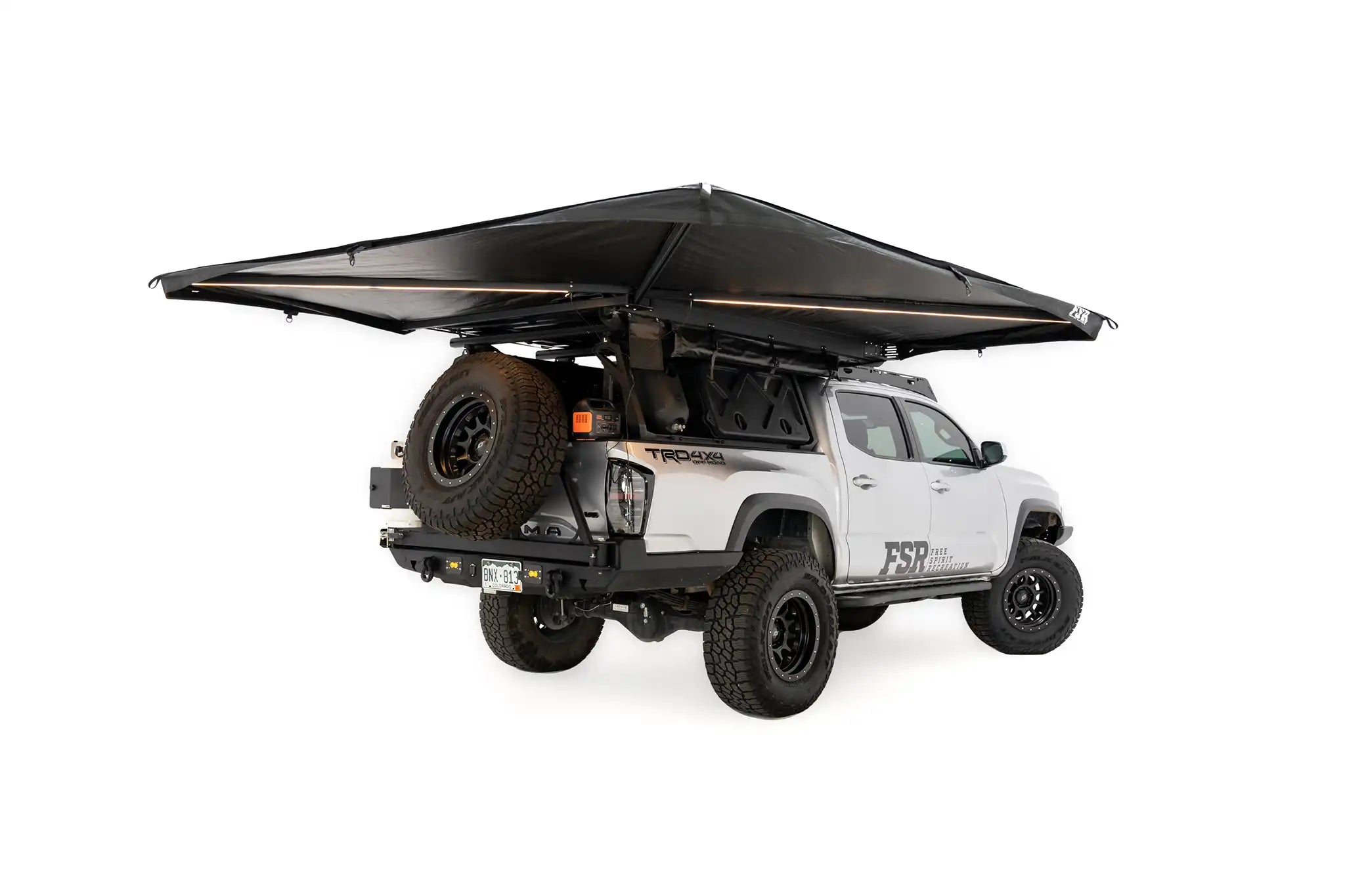

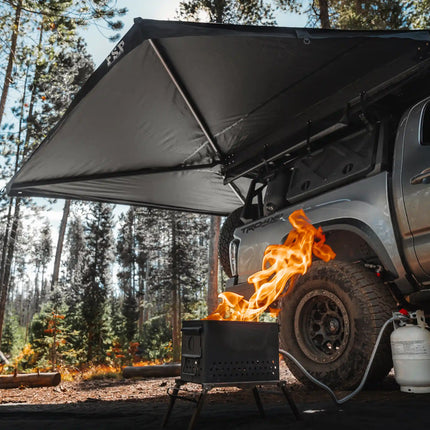

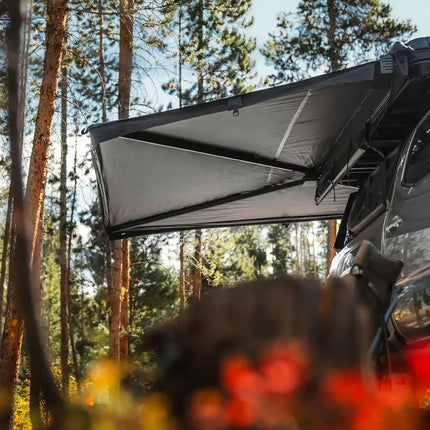

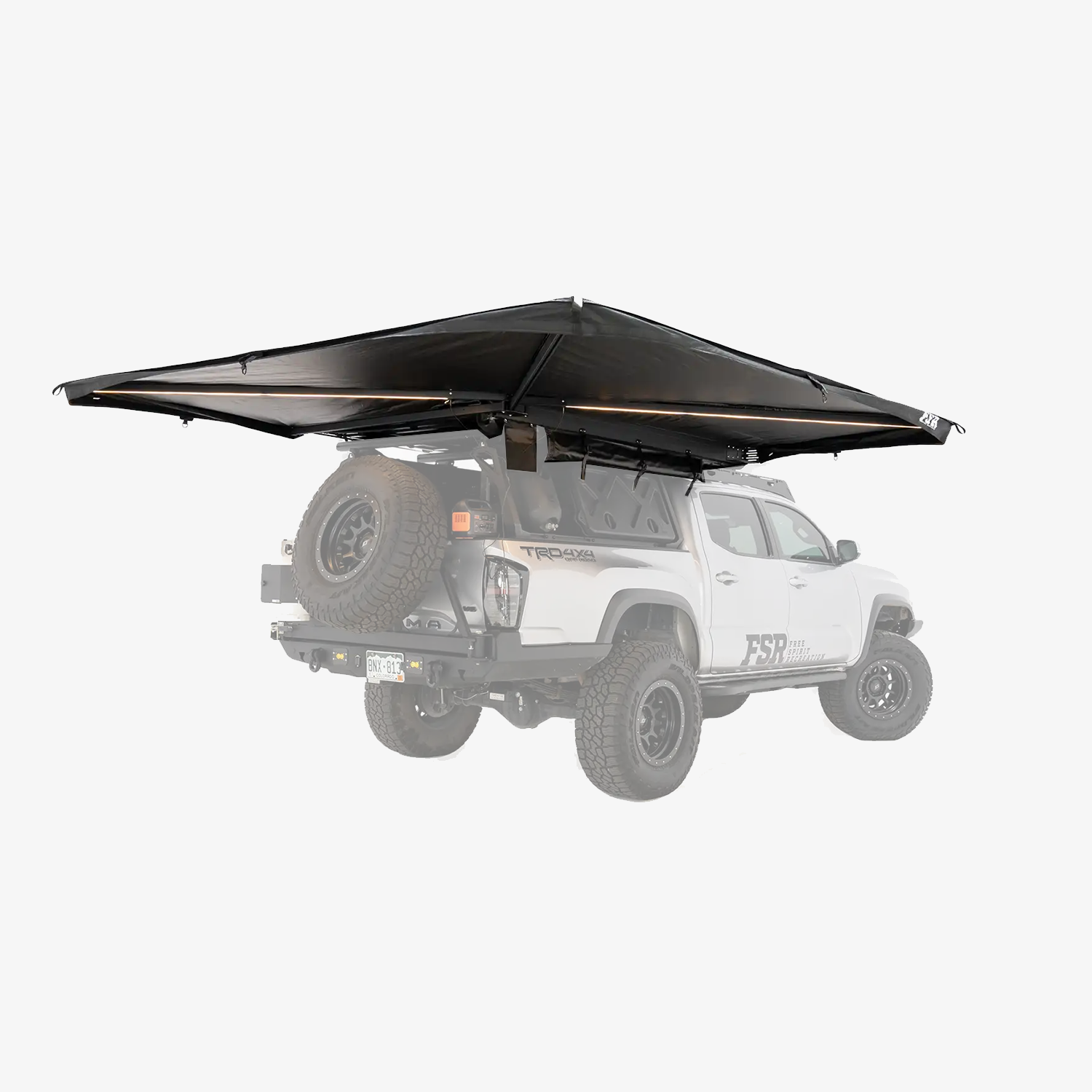

Most awnings give you coverage on one side and leave the rest of camp exposed. The 270 wraps around — extending along the full side of your vehicle and across the rear simultaneously, with a squared-off rear panel that keeps coverage consistent all the way to the corner. That geometry matters most at the tailgate: it turns your cook setup into a sheltered workspace, keeps gear dry from multiple directions, and creates a defined camp area you can actually use in the rain. Over 80 square feet of it, deployable in under a minute, without a single support pole.
Features:
-

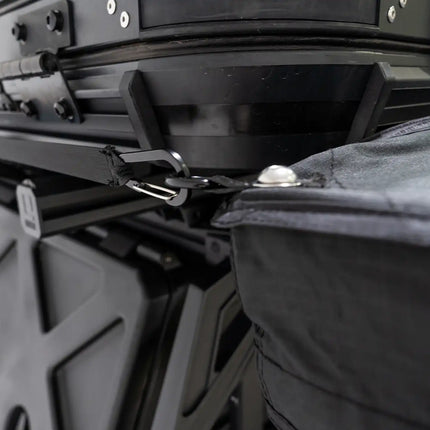

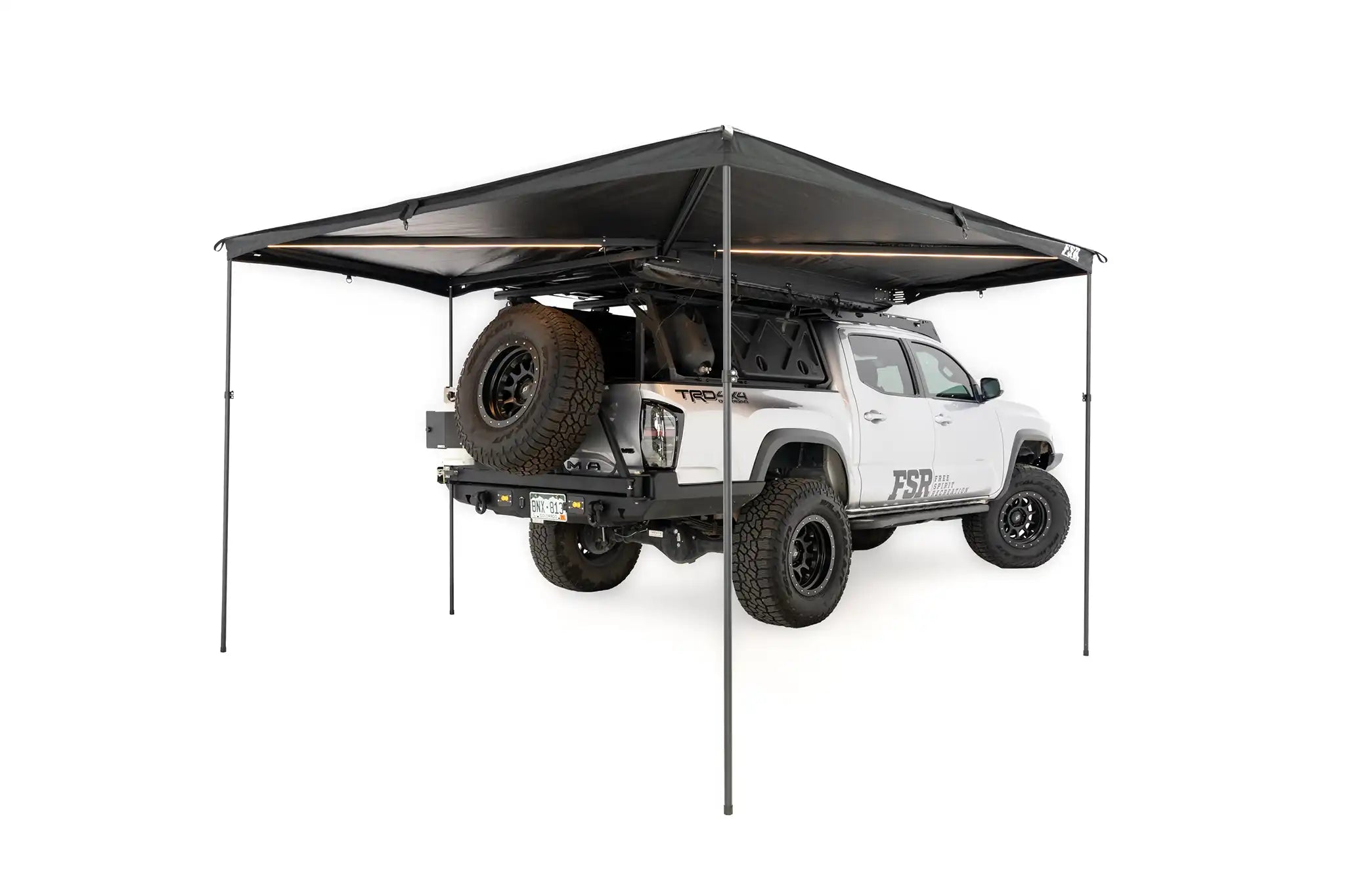

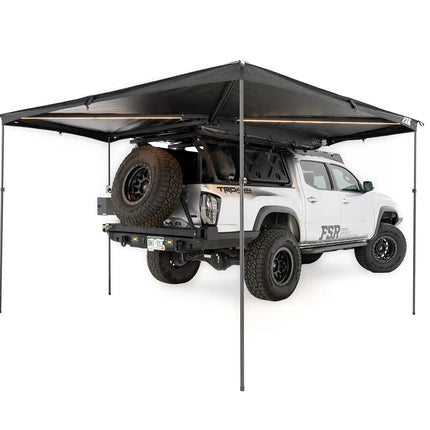

Freestanding Capability The rigid arm design supports the entire canopy without ground poles — no guy lines, no staking, no setup routine to memorize. Guy lines + stakes are included for windy conditions – Recommended for any degree of wind – or when pairing with awning walls, but for everyday camp use you won't need them. Swing, lock, done.
-
80 Square Feet of Coverage A wide, semicircular arc runs the full length of the vehicle side, providing one of the largest single-side coverage footprints available in a freestanding awning at this weight class.
-
600D Oxford Ripstop — Waterproof The canopy is built from 600D Oxford Ripstop with a waterproof coating — the same material spec as the 180. Built to handle rain, not just shade.
-

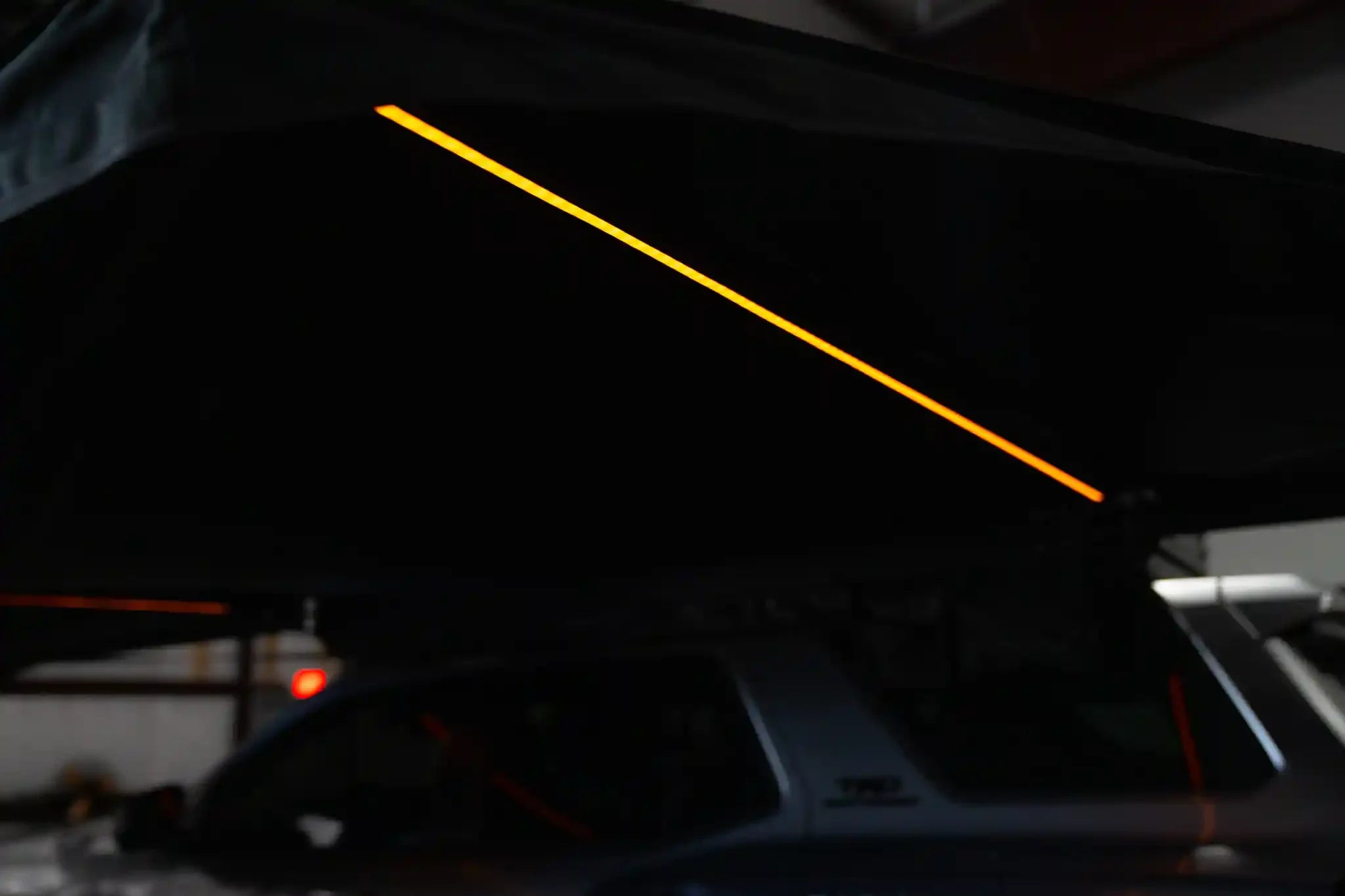

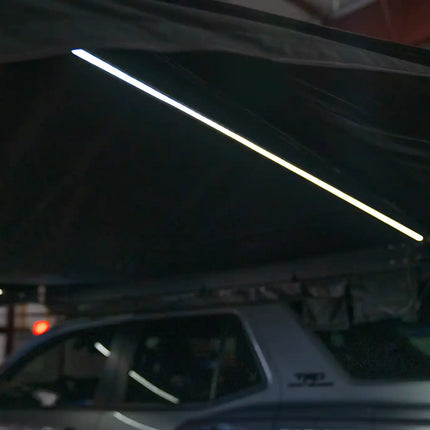

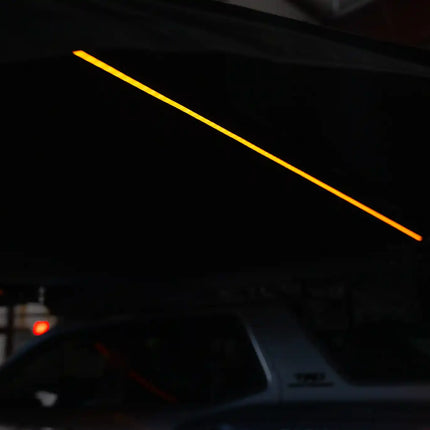

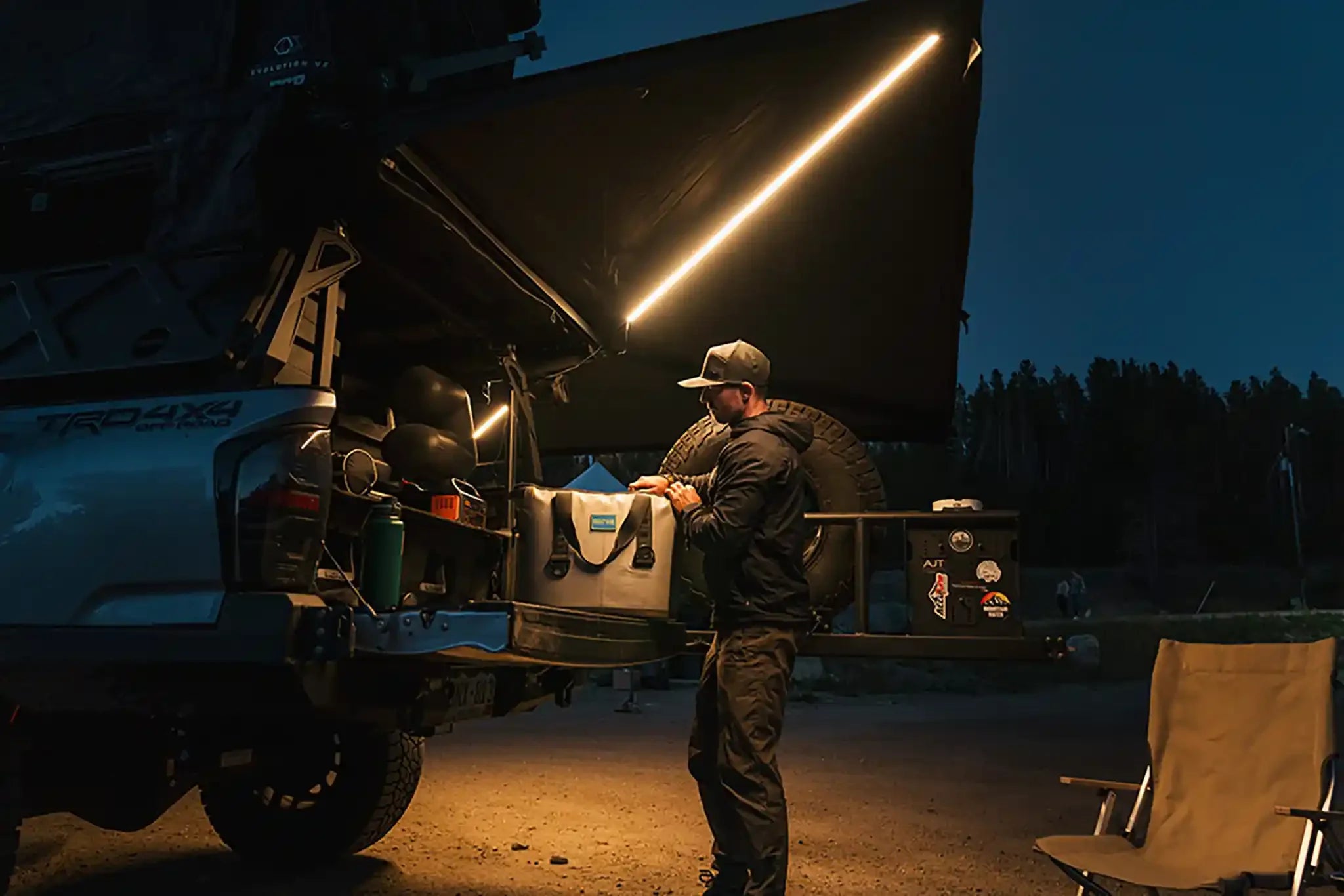

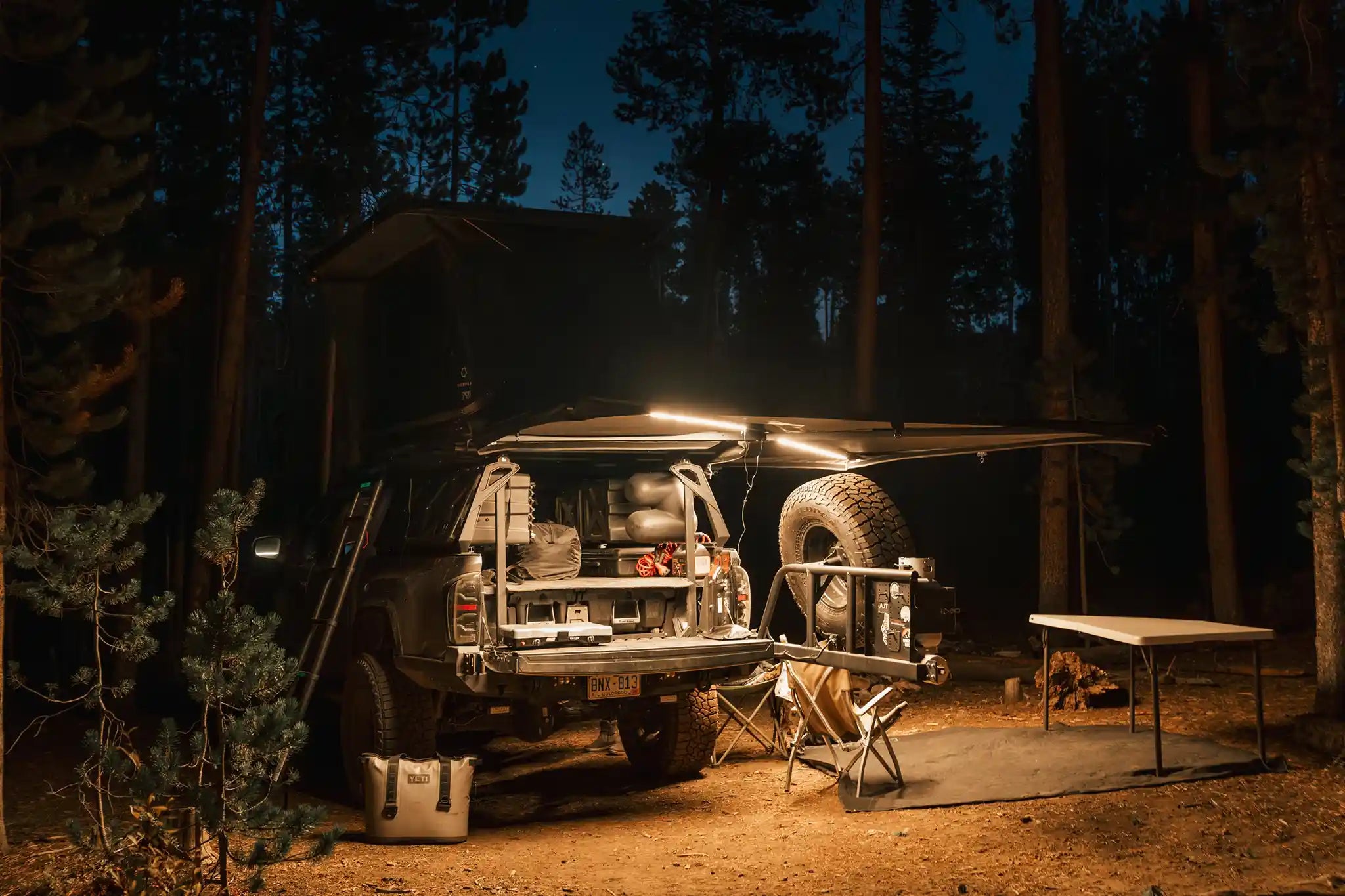

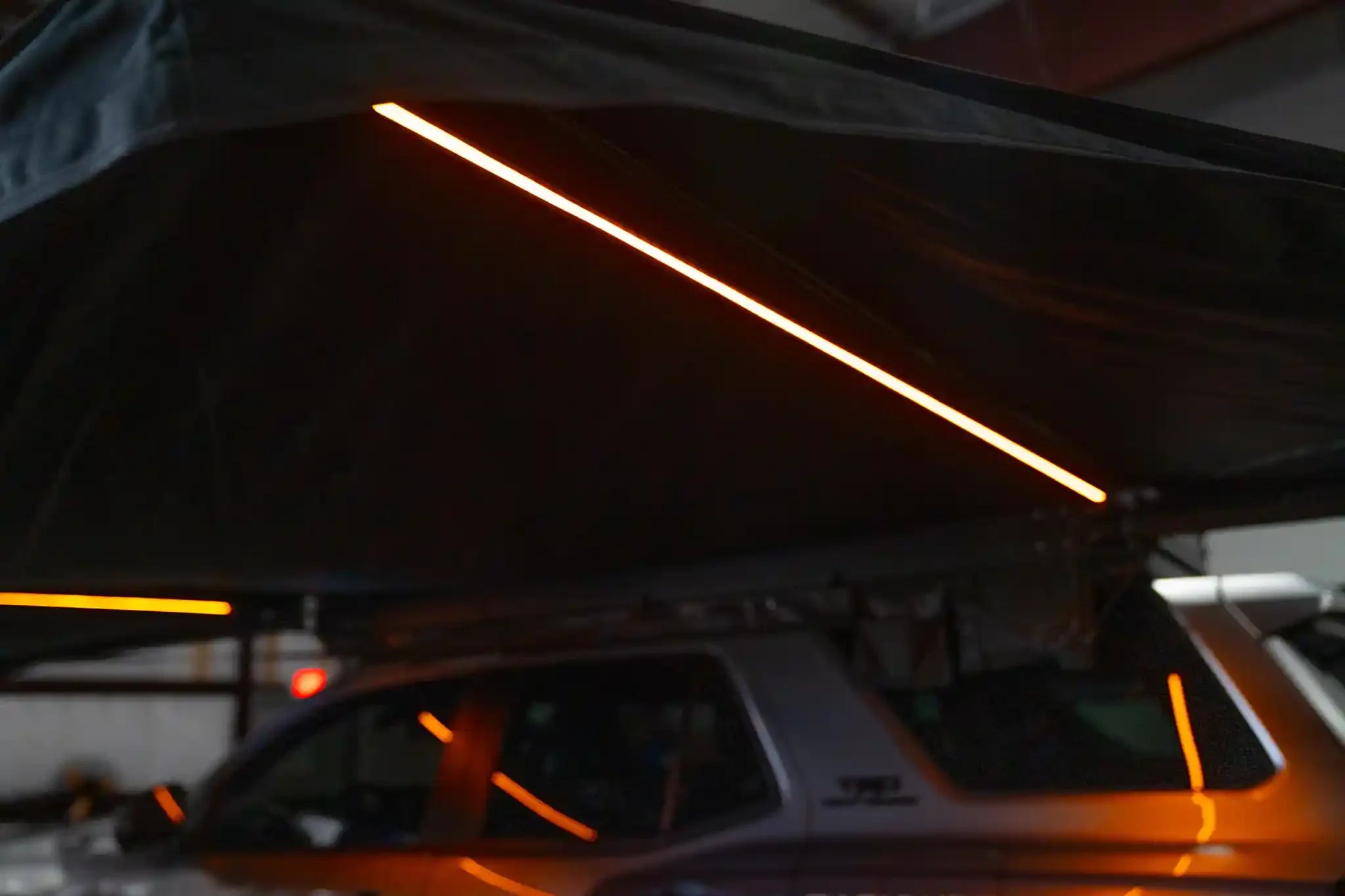

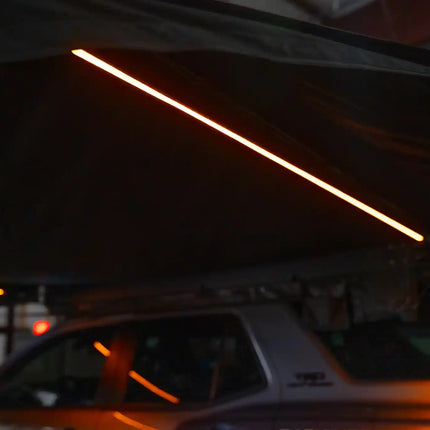

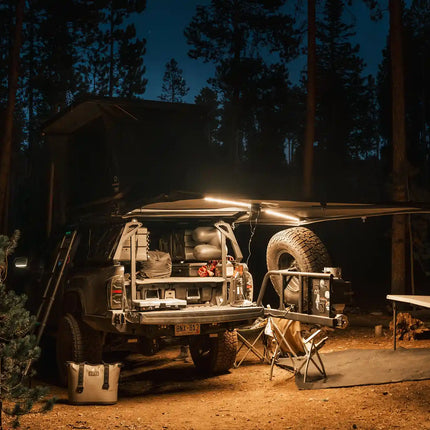

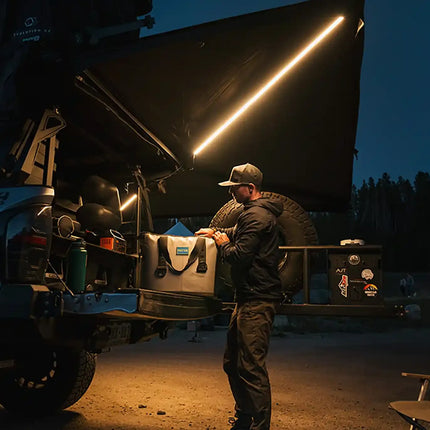

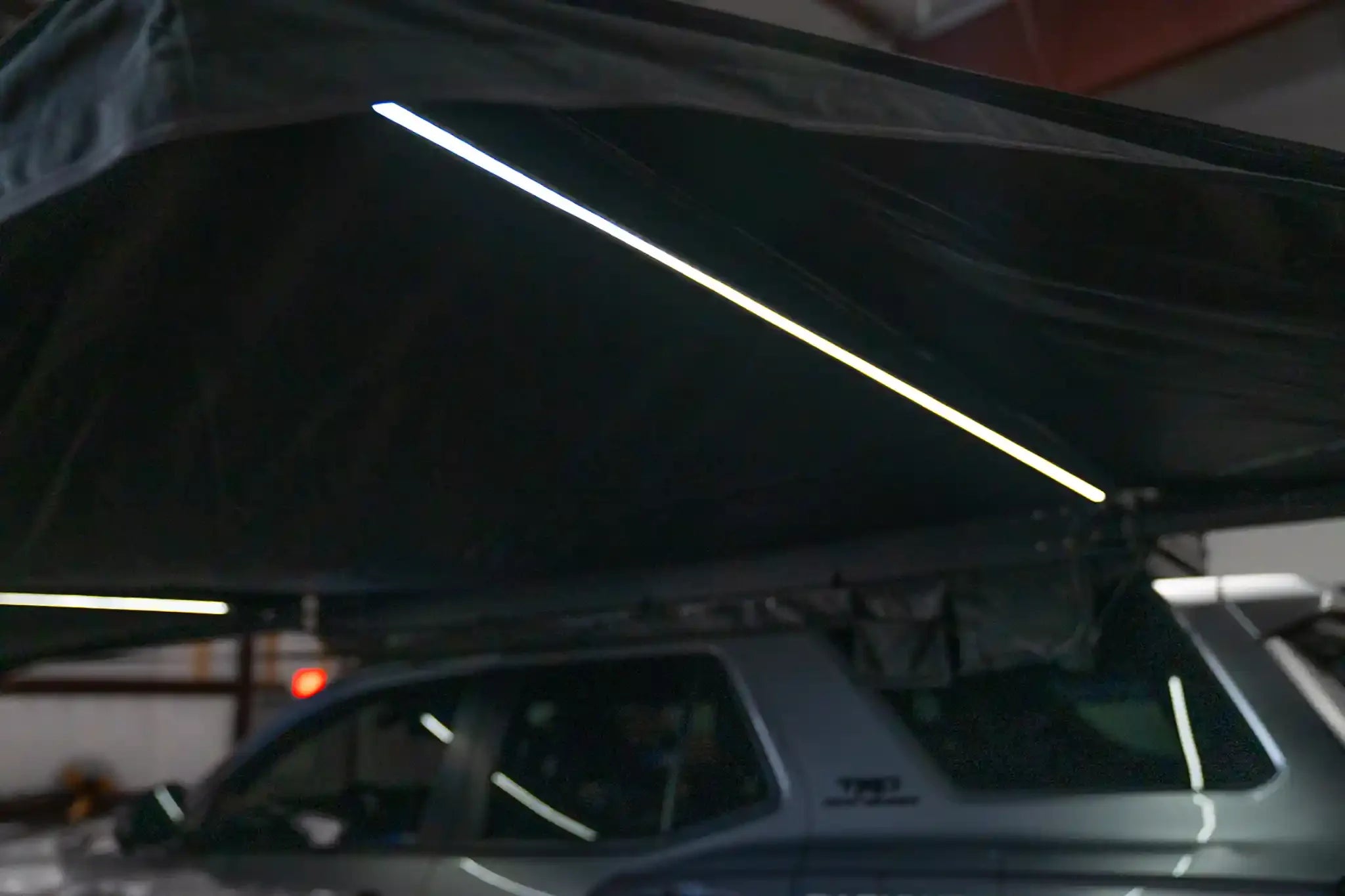

Integrated, Dual-color, Dimmable LED Lighting LED strips run along the main arms giving you warm, dimmable light across the entire coverage area. USB powered — connect a battery bank (sold separately) and you have a fully lit camp without a separate lighting system.
-

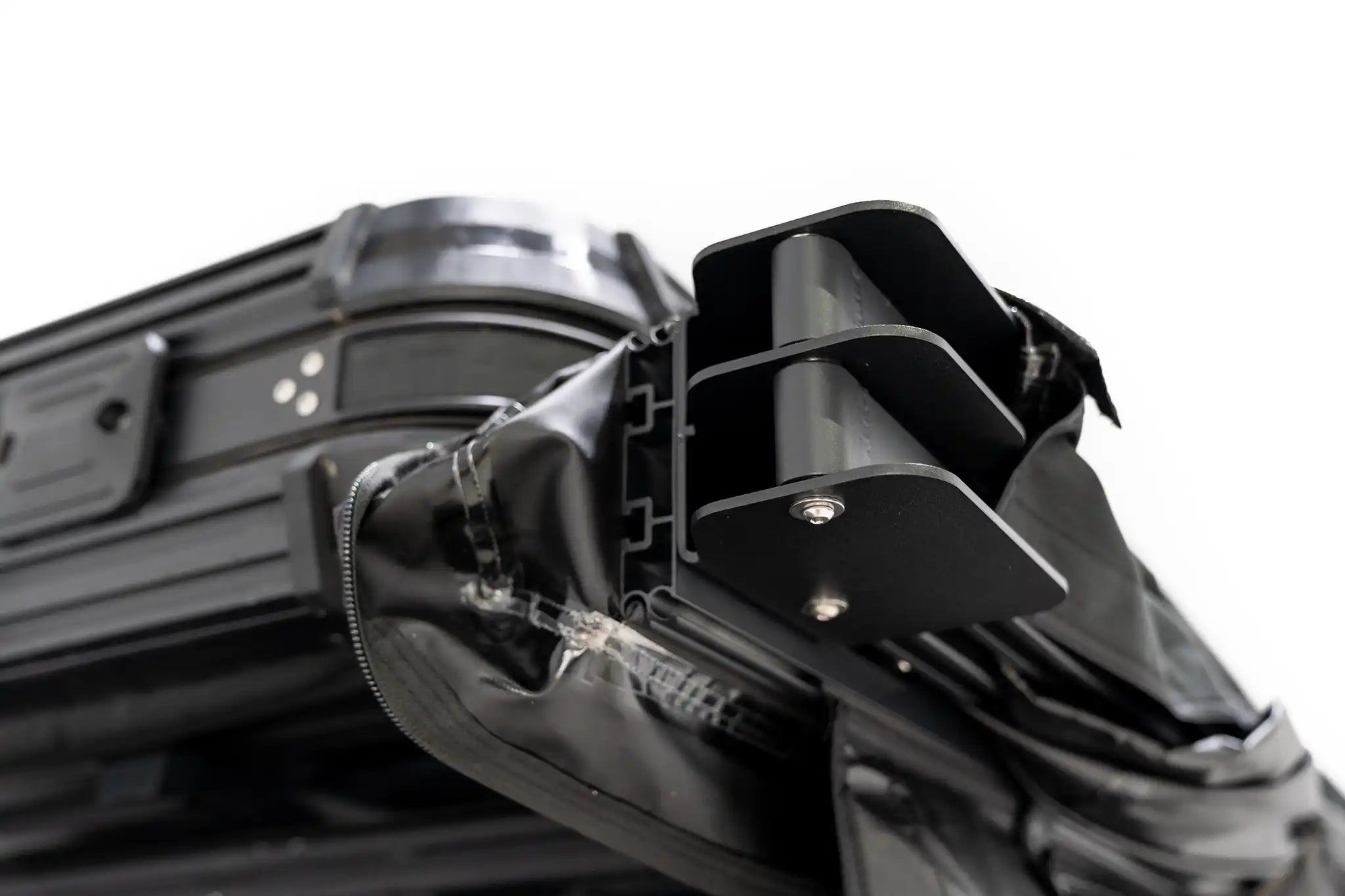

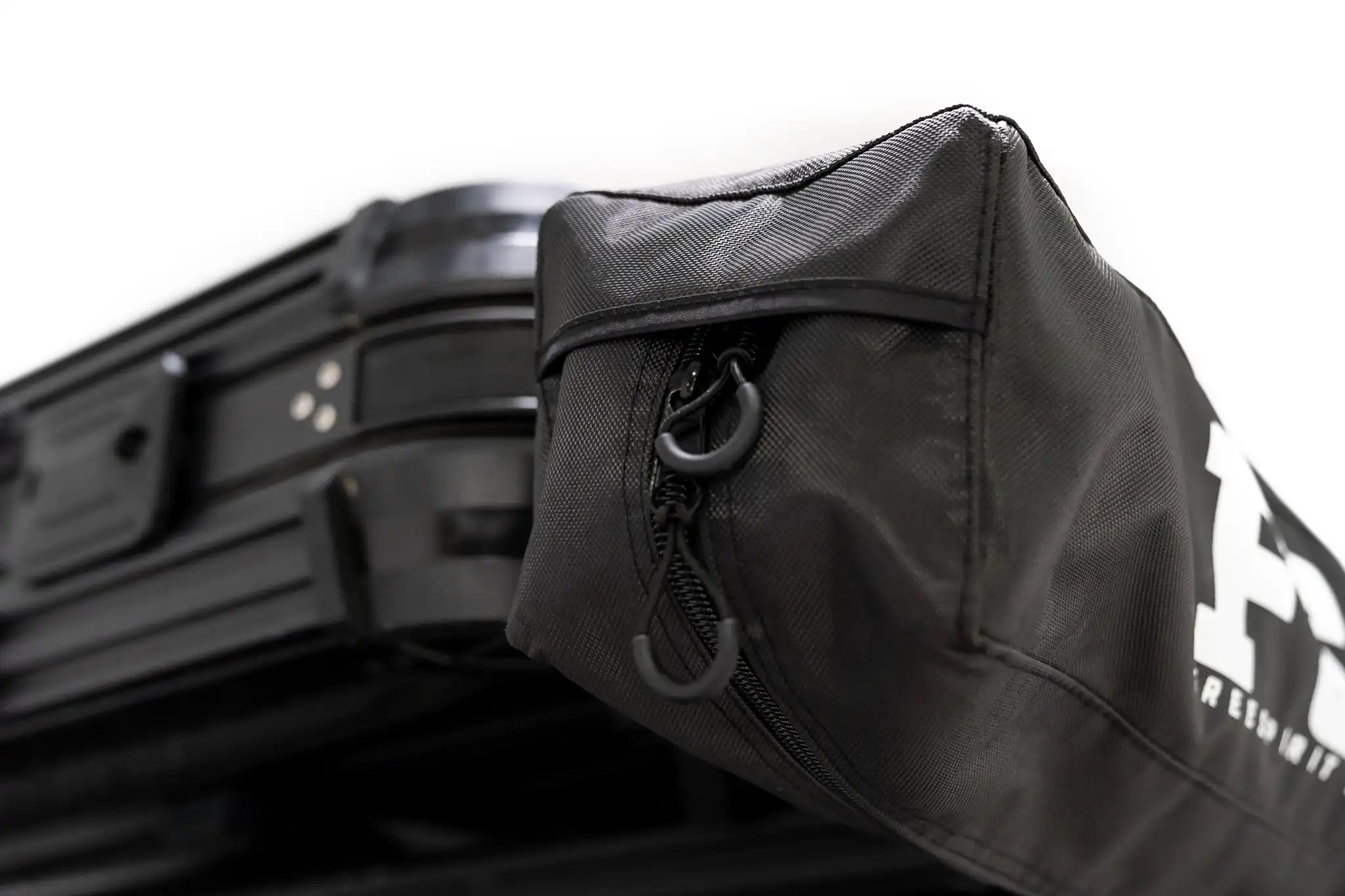

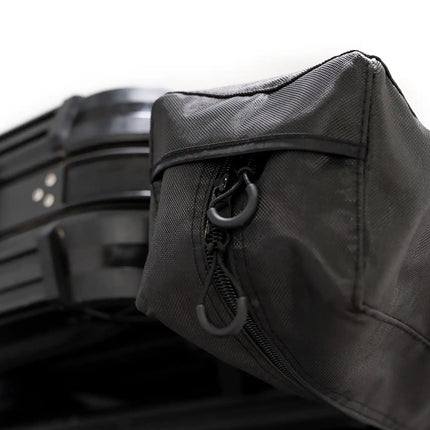

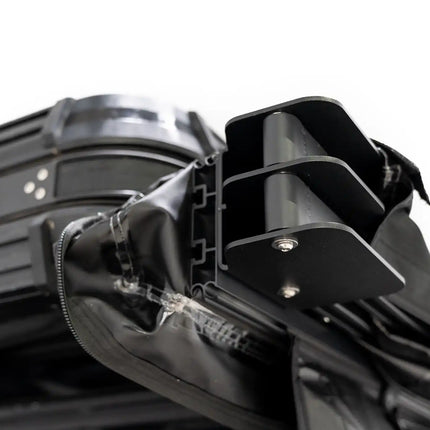

Redesigned Swing Hinges + Canvas Cover The V2's redesigned swing hinges add support over the original and the improved canvas cover protects the mechanism from low-hanging branches on the trail.
-

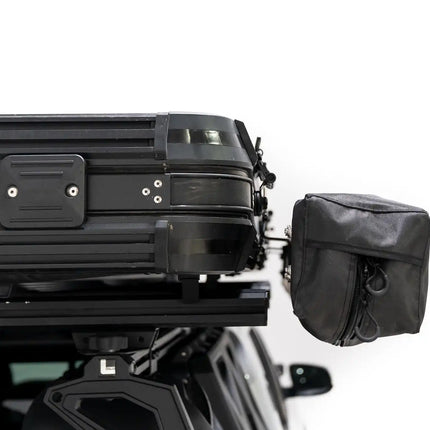

Integrated Keder Rail The keder rail on the backplate lets you swap between the included gear grid, support pole bag, and small accessory bag — or add awning walls to fully enclose the space for a private room at camp.
-

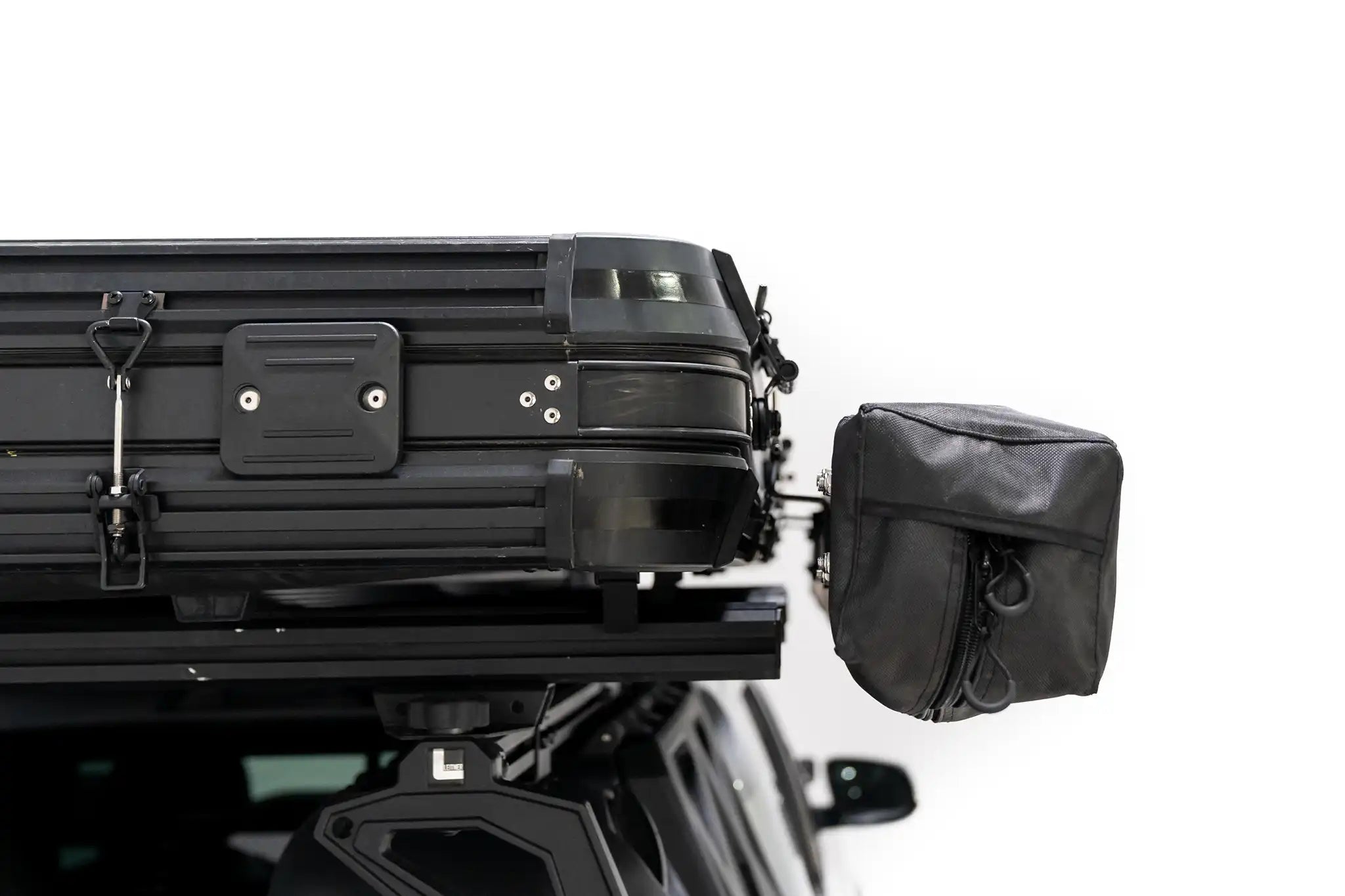

Available Driver or Passenger Side Mounts on either side of the vehicle. Pairs directly with Evolution and Aspen with our rooftop tents with our awning bracket system — no drilling, no improvised hardware. Universal brackets included.
Specs:
-
Coverage: 270° Side + rear wrap-around, squared-off rear panel
-

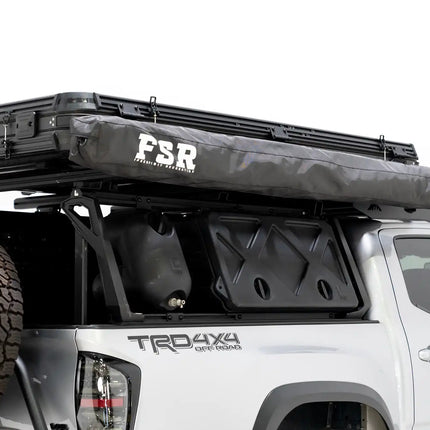

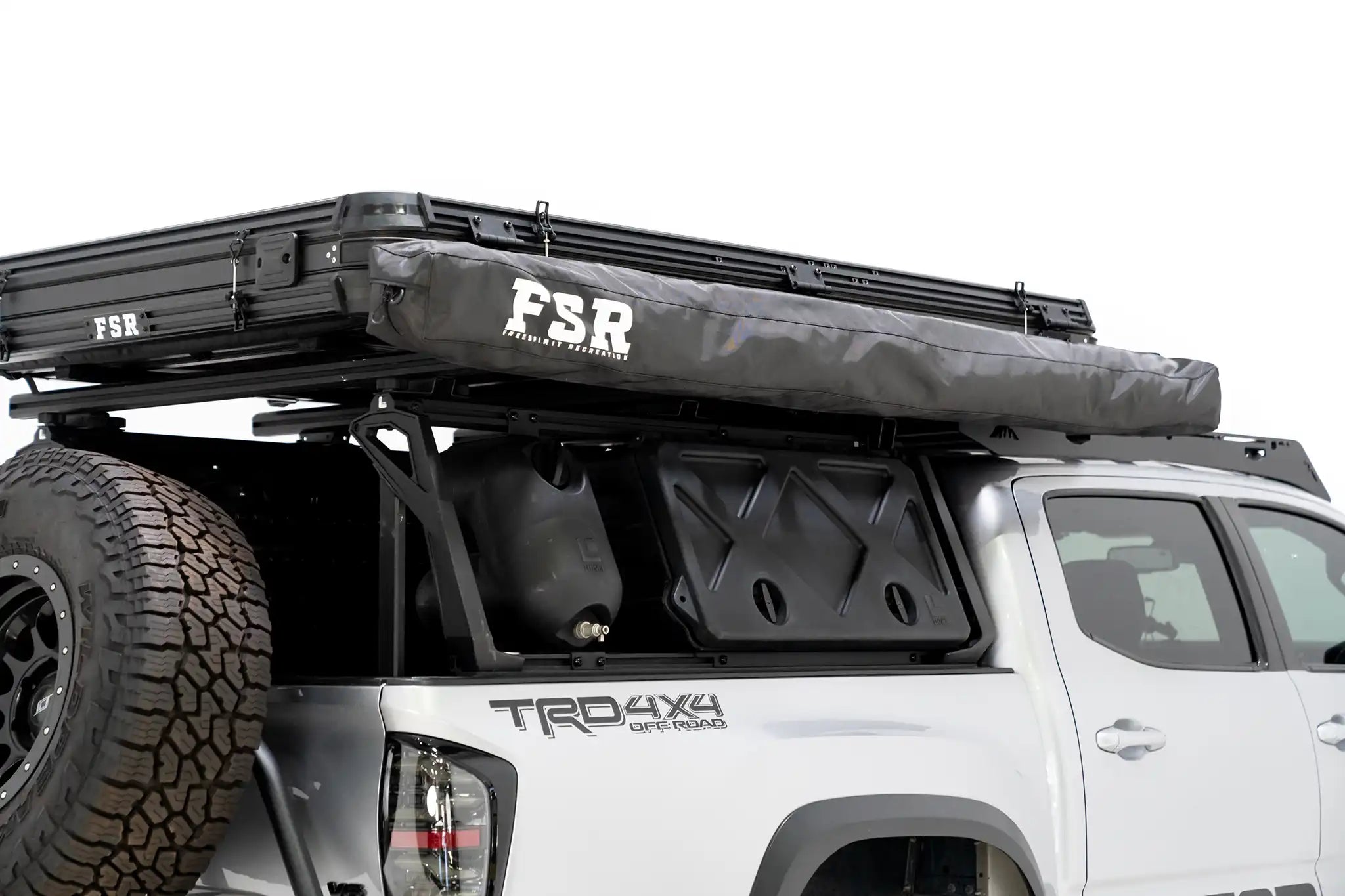

Closed dimensions: 90.5" x 5.9" x 5.9
-
Open dimensions: 72" x 112" Vehicle side, 52" x 126" Rear
-
Mounting backplate: 2" spacing track-to-track
-
Fabric: 600D Oxford Ripstop, waterproof coating
-
Lighting: Integrated, dual-color, dimmable LED · USB powered (battery sold separately)
-
Mounting: Driver side or passenger side Compatible with FSR RTT awning bracket system
-
Weight: ~43 lbs
-
Coverage area: 80.7 sq. ft
